射频记录回放系统

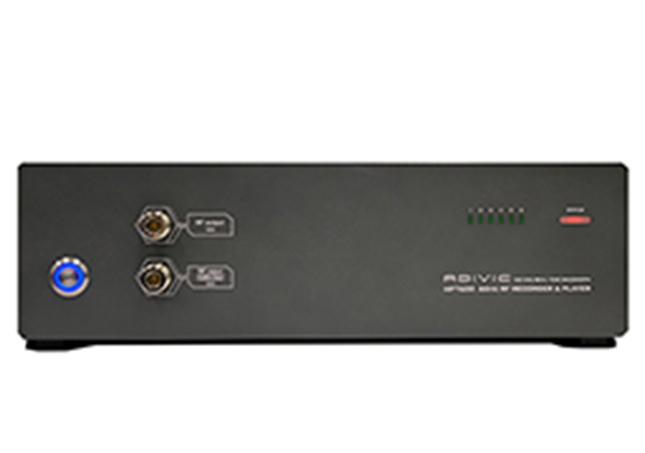

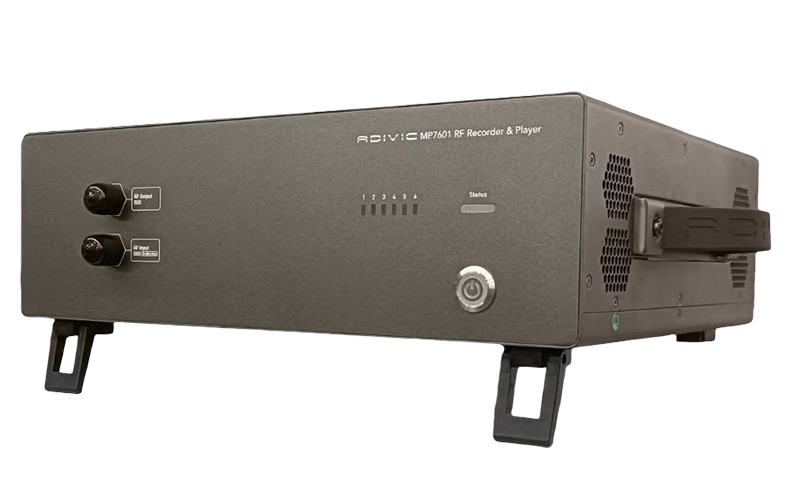

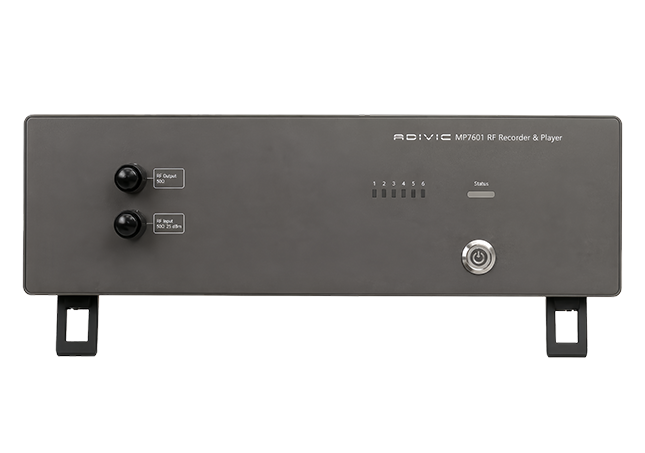

● Standalone unit with real-time RF signal analysis, recording, and playback functions；
● Frequency range: 300 KHz to 6 GHz, bandwidth adjustable from 2 MHz to 100 MHz；
● Sampling rate: 250 MS/s, ADC precision: 16 Bit；
● Data format compatible with MATLAB, providing IQ data processing tool software；
● Automatic switching, start, and stop of recording for signals in different frequency bands within the working range；
● Loop playback during signal replay to ensure test repeatability；
●Supports multiple recording modes such as timed recording and trigger recording；
● Supports real-time signal power monitoring；
● Provides a radio frequency synchronous recording system solution for up to 6 devices in cascaded synchronization.
