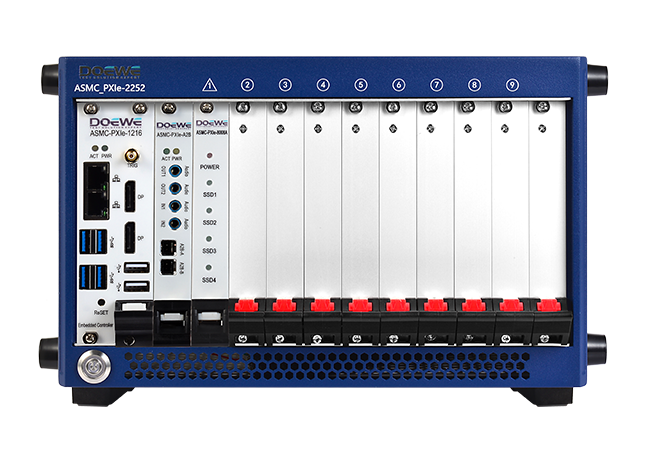

PXIe机箱

● High-bandwidth backplane with full hybrid slot compatibility；
● 600W industrial-grade power supply and efficient heat dissipation ensure reliable operation in extreme environments；
● On-board intelligent monitoring and clock synchronization improve system-level measurement and control accuracy；
● Compliant with PXI Express and cPCI Express specifications, providing 1 System slot, 1 System Timing slot, and 7 Hybrid peripheral slots；
● Capable of providing up to 24GB/s system bandwidth and up to 8GB/s peripheral frequency for all slots；
● Equipped with an intelligent system monitoring controller to feedback various chassis statuses, including fan speed, system voltage, and internal temperature；
● Two 80mm×80mm cooling fans on the back of the chassis provide excellent cooling capability.
