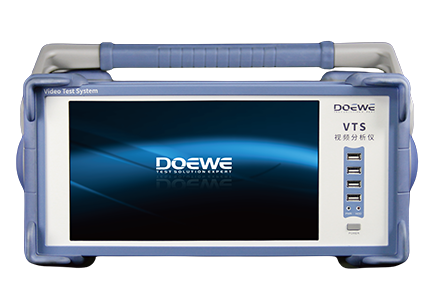

模拟/数字视频信号分析仪

● Fully meet the measurement requirements of transmission channel indicators for closed-circuit television monitoring systems in accordance with JTG 2182-2020 standard；
● Support for analog CCVS and digital HDMI interface video index analysis；
● "One - key testing" is supported, and all indicators can be tested with one key in cooperation with the video signal source VSG；
● Support input signal waveform viewing function；
● Support test result export function；
● It supports importing test item configuration files to avoid the tedious process of configuring test project parameters. You can directly conduct tests after importing the pre - configurations；
● CCVS Interface Test Indicators Supported: Video Level、Sync Pulse Amplitude、Echo、Luminance Nonlinearity、Chroma/Luminance Gain Difference、Chroma/Luminance Delay Difference、Differential Gain (DG)、Differential Phase (DP)、Amplitude-Frequency Characteristic and Signal-to-Noise Ratio (SNR)；
●The test indicators supported by the HDMI interface include: Y/Cr/Cb signal output amplitude error, Y signal amplitude-frequency characteristic,Y/Cr/Cb signal nonlinear distortion, inter-channel delay difference, and signal-to-noise ratio.
