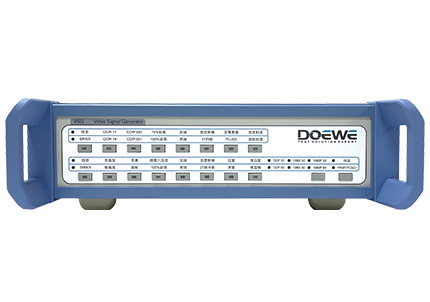

模拟/数字视频信号发生器

● Support composite video (CCVS) simulation / analog HD component (YPbPr) and HDMI outpu；
● Modular design allows for configuration or upgrading as needed；
● Multiple standard test patterns, and provide SD/HD comprehensive test charts for highway intersection testing；
● The buttons can be directly set to switch images and formats, featuring convenient operation；
● The SD signal supports 720×576 resolution at 50Hz with an aspect ratio of 4:3；
● The SD comprehensive test patterns include CCIR17/18/330/331, 75% color bars, SinX/X, 50% flat field, red field, 15KHz square wave, and blanking line signals, etc；
● HD resolution supports 1080i/1080P, and the frame rate supports 50Hz/60Hz；
● HD provides comprehensive test patterns, multi-burst, 100% color bars, extreme eight-gray scale, white window, black window, black-and-white window, chessboard,white field, black field, frame skipping, and trailing test patterns valid for 1080i and 1080p formats.
