● Equipped with 32-bit Delta-Sigma DAC/ADC, supporting sampling rates from 48kHz to 768kHz；
● Built-in A²B bus transceiver (AD2428) supports up to 11 nodes (1 master node and 10 slave nodes), with 32 upstream and 32 downstream channels, covering a bus length of 40 meters；
● Input/output voltage range: 2Vrms (supporting analog input/output)；
● Supports TEDS function compliant with IEEE1451 standard, open-circuit voltage ≥23.5V, output current accuracy 4.0mA (±5%)；
● Equipped with 3.5mm three-core TRS interface, compatible with single-ended and differential inputs, facilitating connection and testing with various audio devices；
● Flexible input/output interfaces and highly integrated design enable rapid deployment in multiple testing environments.
PXIe A²B采集卡
Product Center
/Product Center

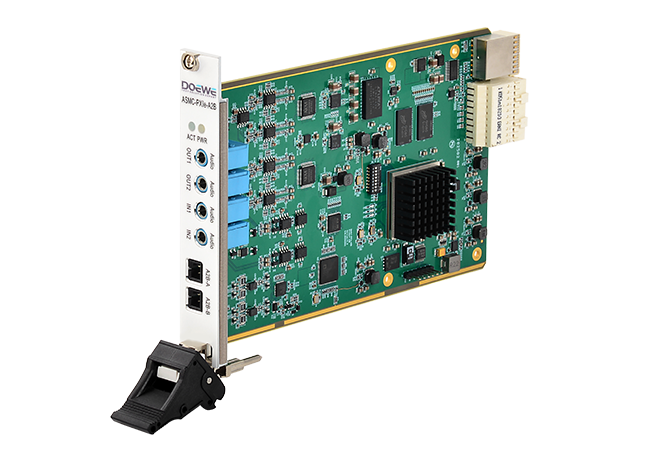

PXIe A²B Acquisition Card
ASMC-PXIe-A²B Pxle采集卡
PXIe A²B Acquisition Card ASMC-PXIe-A²B-V1.0-C.pdf
High-precision, full-node acquisition with flexible interface design, creating an efficient and accurate audio testing platform.
